API Nodes

To begin building your API, you will need to use at least one of the following nodes: Flow Input, Flow Output, or Webhook (which will be covered in a later section). These nodes define the structure of your AI workflow's API.

Flow Input Node​

The Flow Input Node is used to define the inputs for your API. Each Flow Input Node corresponds to a field in the request body sent to initiate your flow. The field api_input_name sets the name of the input field in the request body.

Example​

Consider the following configuration:

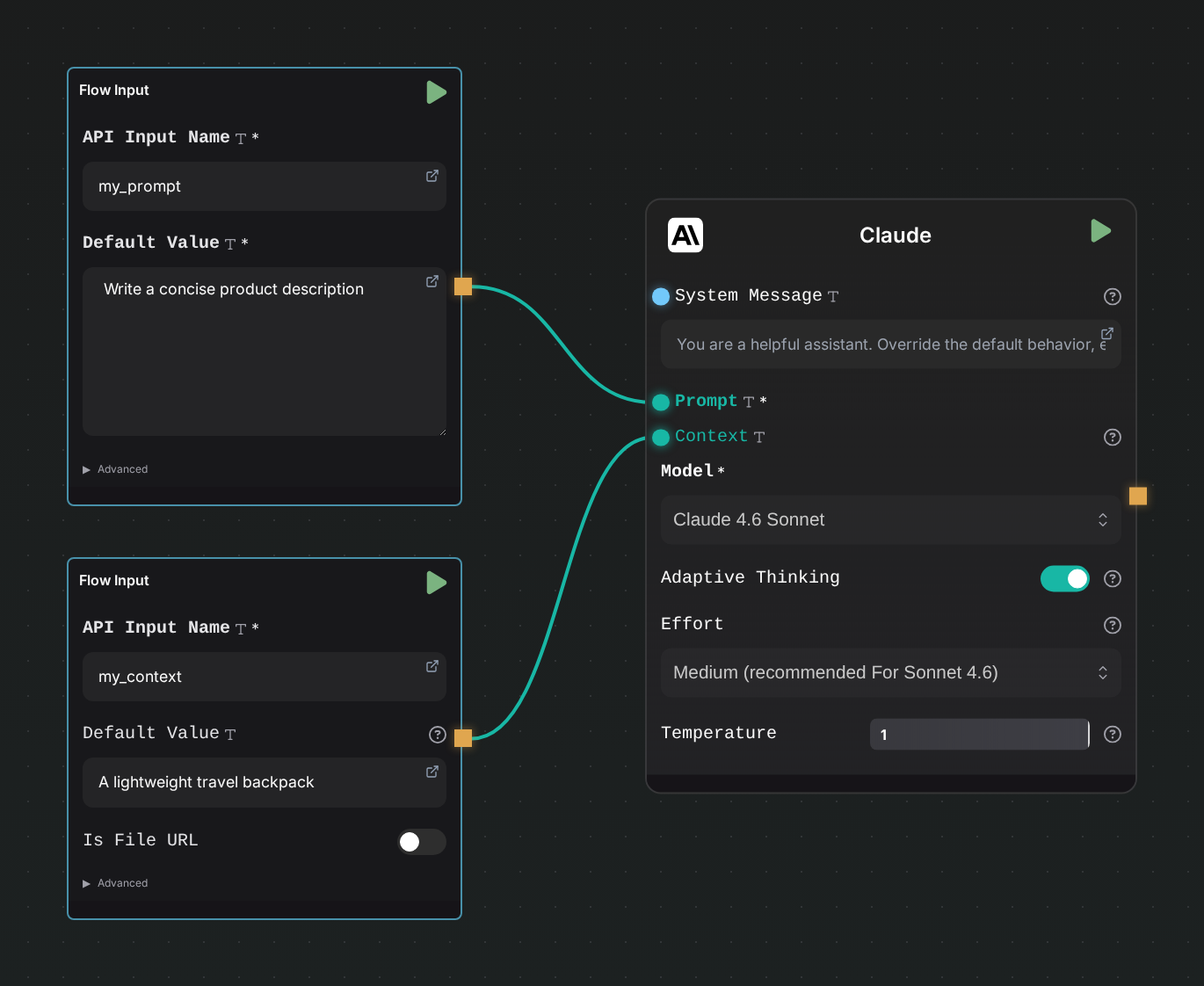

Two Flow Input nodes connected to the prompt and context fields of a Claude node

You would send a request body structured as follows:

{
  "my_prompt": "Write a concise product description",
  "my_context": "A lightweight travel backpack"
}

Each Flow Input Node can have a default value. If a default value is set, the parameter becomes optional in the request body.

The Flow Input Node adapts to the type of field it is connected with.

Flow Output Node​

The Flow Output Node is straightforward to configure. You only need to set the api_output_name, which will be the name of the field in the final response.

Example​

Consider the following configuration:

API workflow with two Flow Input nodes, a Claude node, and a Flow Output node

The final response will be structured as follows:

{
  "my_output": "Lorem Ipsum dolor sit amet, consectetur"
}

Handling Outputs​

You can set as many Flow Output or Flow Input nodes as needed. The Flow Output Node has an output handle and functions like a transition node in a flow. This means it will pass the output to the next node, allowing you to include intermediate results from your flow in the final response if desired.

Additional Resources​

For more detailed information and advanced configurations, refer to the following resources:
